LightComponent Class Reference

Component to store light data. A light is an emitting mesh, rendered or not, that for each ogl::ShaderProgram used in the scene, its data will be sent to the shader. More...

#include <Component.hpp>

Inheritance diagram for LightComponent:

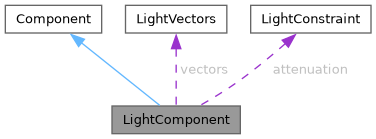

Collaboration diagram for LightComponent:

Public Member Functions
	LightComponent (const glm::vec3 &direction)
	Instances a directional light with the given direction.
	LightComponent (const glm::vec3 &position, const LightConstraint &constraint)
	Instances a point light with the given position and LightConstraint.
	LightComponent (const glm::vec3 &position, const glm::vec3 &direction, const LightConstraint &constraint, const float &cutOff=12.5f, const float &outerCutoff=17.5f)
	Instances a spot light with the given position, direction, LightConstraint, light cutoff and outer cutoof.

Public Attributes
glm::vec3	color {1, 1, 1}
	light color, default white
float	intensity = 1.f
	light intensity
LightType	type = LightType::LIGHT_DIRECTIONAL
	Light type for shader programs. This member is mainly used to create shader data blocks.
LightVectors	vectors {}
	Light components vectors.
glm::vec3	direction {1, -1, -1}
	light direction
glm::vec3	position {}
	light position
LightConstraint	attenuation {}
	light attenuation
float	cutOff = 12.5f
	light cutoff
float	outerCutoff = 17.5f
	light outer cutoff
bool	caster = true
	light caster

Detailed Description

Component to store light data. A light is an emitting mesh, rendered or not, that for each ogl::ShaderProgram used in the scene, its data will be sent to the shader.

Constructor & Destructor Documentation

LightComponent() [1/3]

LightComponent::LightComponent ( const glm::vec3 & direction )

inline

Instances a directional light with the given direction.

Parameters

direction

light direction

LightComponent() [2/3]

LightComponent::LightComponent ( const glm::vec3 & position, const LightConstraint & constraint )

inline

Instances a point light with the given position and LightConstraint.

Parameters

position	light position
constraint	light attenuation parameter

See also

LightConstraint

LightComponent() [3/3]

LightComponent::LightComponent ( const glm::vec3 & position, const glm::vec3 & direction, const LightConstraint & constraint, const float & cutOff = 12.5f, const float & outerCutoff = 17.5f )

inline

Instances a spot light with the given position, direction, LightConstraint, light cutoff and outer cutoof.

Parameters

position	light position
direction	light direction
constraint	light attenuation parameter
cutOff	light cutoff parameter
outerCutoff	light outer cutoff parameter

See also

LightConstraint

Member Data Documentation

type

LightType LightComponent::type = LightType::LIGHT_DIRECTIONAL

Light type for shader programs. This member is mainly used to create shader data blocks.

See also

LightType

vectors

LightVectors LightComponent::vectors {}

Light components vectors.

See also

LightVectors

---

The documentation for this class was generated from the following file:

• App/include/ECS/Component.hpp
